Window Shade Welders

Batten Seam Welder and Auto Hem Pocket Folder

Click Here for Video of Batten and Seam Welder Click Here for Video of Batten and Seam Welder click here for HD-300 video
Batten & Seam Welder Video Auto Hem Pocket Folder Video HD-300 Video


Aline has been in business since 1932. We are located in Los Angeles County, 30 minutes from LAX airport.

Aline is a leading manufacturer of Thermal Impulse and Vacuum Seal equipment. Our expertise ranges across all industries and allows us to assist you in determining the right solution for your application. Our product mix is highly varied and both standard and custom equipment are available.

Having the benefit of this expertise we are now the only US manufacturer who can offer industrial quality sealers for the window shade industry.

We provide the following machinery:

  • Auto hem pocket folder (168” wide)
  • Batten & Seam welder (128” wide)
  • Straight bar sealers (up to 300 “ wide)
  • side welders ( dual)
  • hand sealers

Each machine is manufactured with heavy duty welded steel for the frames. Side plates are one inch thick steel. All seal bars, clamp bars, tucking bars and indexing bars are either Aluminum bar stock or Stainless Steel. Machine finish is Powder Coat.

Operating controls include a network capable PLC/HMI with unlimited recipes. This allows the user to program the required set points for all your different materials. With speed being critical each machine can perform at 2-3 cycles per minute when incorporating the water cooling option. Motorized rollers can also contribute to productivity and ease of use. The standard weld size is ¼ inch (6mm) includes both top and bottom heat. Wider or narrower heating elements are available.

Standard features of our PLC and Touch Screen:
  • Programmable recipes (unlimited) with alpha/numeric characters
  • Network, SMS and WIFI capable
  • Remote access and programming
  • Password security up to eight levels
  • Alarms to Email server and cell phone
  • Seal counter by process and total
  • Program updates or changes through USB port
  • Complete trouble shooting screens for all I/O’s with JPG. Photographs.
  • Choice of primary Voltage (except 110V)
  • 24VDC supply voltage
  • Fast PID temperature control with auto tuning
  • Phase control and synchronization for heater output control

Standard features for Batten and Seam welder:

  • 128 inch wide seal with unlimited side access
  • Dual top &bottom ¼” wide seal with 2 1/8” OD
  • 6.5 inches clearance between upper and lower seal bar
  • Independent front and back clamping bars
  • Reference bars front and back for fabric alignment
  • No fabric overlap
  • Choice of manual or semi automated operation
  • Temperature control for repeatable seals
  • Aircraft cable emergency rope stop on all four sides
  • Semi circular front and back idle rollers to hold Fabric
  • Pneumatic operation
  • Freestanding with lockdown caster

Standard features for Auto Hem Pocket Folder:

  • 168 inch wide seal with unlimited side access
  • Dual top & bottom ¼” wide seal
  • Front clamping bar
  • Rear adjustable indexing bar
  • Hem pocket adjustable between .75-2.5 inch
  • Hand wheel with digital depth gauge to control depth of folding slot
  • Stainless steel tucking bar
  • Choice of manual or semi automated operation
  • Temperature control for repeatable seals
  • Aircraft cable emergency rope stop on all four sides
  • Semi circular front idle rollers to hold Fabric
  • Pneumatic operation Freestanding with lockdown caster

Options for both machines include motorized rollers, bars drilled for water cooling and digital water chiller. Dual Side welders are offered so that you can close off the ends of the pockets after inserting your stiffening rod. If a Batten & Seam welder or Auto hem Pocket folder is not required we can provide a simpler heat sealer of almost any length.

All Aline Machines come with a ONE YEAR WARRANTY, electrical schematics and full time technical support.

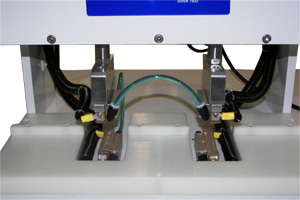

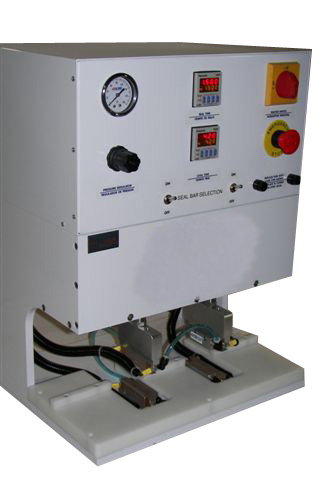

dual side welder w/ water cooler bars Dual Side Welder w/ water cooled bars

Dual Side Welder with water cooled bars
click on image to zoom

Dual Side Welder with water cooled bars
click on image to zoom
