Aline Heat Seal Corp >> Vacuum Chambers TC-350



Vacuum Chambers



The Aline TC-350 vacuum chamber!



Ideal for all medical, electronic, food
and industrial vacuum chamber applications!



The Aline TC-350 vacuum chamber provides you with all the key features you need with the affordability of purchase and operation you require.

From the polished 316 stainless steel construction, removable sealing bar and transparent lid, the Aline TC-350 vacuum chamber provides you with high-quality, long lasting features that pay off year after year.

Options like gas flush and sensor control make the TC-350 perfect for all medical vacuum chamber applications, including clean room applications.

Advanced features like the BOSCH vacuum pump and the optional PLC/Touch screen controls make the Aline TC-350 perfect for all heavy-duty industrial, cosmetic and medical vacuum chamber applications.

Call Aline today and find out how easy it is to acquire and operate the TC-350 vacuum chamber.

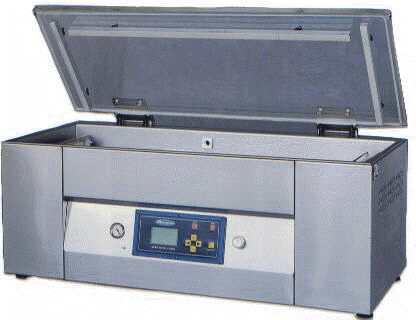

Aline TC-350 Vacuum Chamber

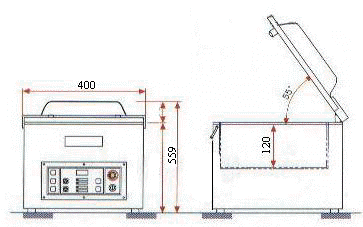

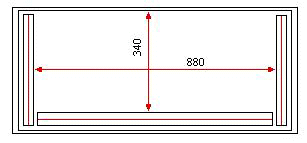

Aline TC-350 vacuum chamber schematic-1 Aline TC-350 vacuum chamber schematic-2

TC-350 Vacuum Chamber Features:
Polished 316 Stainless Steel Construction
Removable sealing bar
Transparent Lid
Stainless steel housing
BUSCH vacuum pump
Available with PLC/TouchScreen for all Medical Applications

TC-350 Vacuum Chamber Options:
Sensor control
Gas flushing
Soft air

TC-350 Vacuum Chamber Technical Data Sheet :
Sealing length: 13.38" (340mm) *2
Chamber height: 4.75" (120mm)
Chamber size: 38.58" (929mm) (L) x 13.78" (350mm) (W)
Sealing bar distance: 34.64"(880mm)
Vacuum pump capacity:21m3/h
Cycle Time: 10-25 Sec
Machine size: 38.58" (980mm) x 15.78" (400mm) x 22" (559mm) (L x W x H)
Voltage: 110v or 220v
Power: 1.6kw
Weight: 253 lbs. (93 kg)
