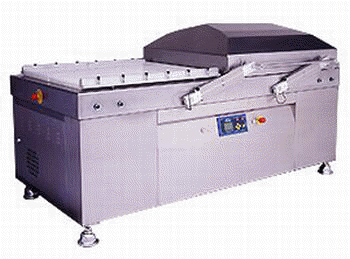

Vacuum Chambers

 Ideal for all medical, electronic, food
and industrial applications!

Polished 316 Stainless Steel Construction
Flat chamber for easy cleaning
Bladder activated sealing
10 program LCD control system
Water proof (IP65) LCD control panel
Water-resistant(IP65) electrical box
Durable aluminum sealing bar
BUSCH vacuum pump
Available with PLC/TouchScreen for all Medical Applications

Sensor control
Gas flushing
High pressure seal
Double sealing bar (Top and bottom seal)
Automatic lid transfer system
Soft air
Double Seal Wire

Technical Data Sheet:
Sealing length: 39"/1000mm*4
Chamber height: 13.7"/350mm
Chamber size: 41.7" / 1060mm(L) * 46" / 1170mm(W)
Sealing bar distance: 35.8" / 910mm
Vacuum pump capacity: 250m3/h
Cycle time: 10-25 Sec
Machine size: 35.36"/1330mm(L)*94.48"/2400mm(W)*49.2"/1250mm(H)
Voltage: 240v/480v/3PH(Other voltages available)
Power: 7.0 kw
Weight: 900 Kgs
Consumption air: 3.5kg/cm2
