Vacuum Chambers

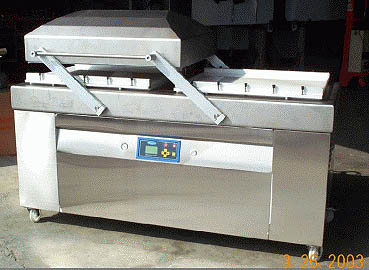

DC-860S-FB



Ideal for all medical, electronic, food
and industrial applications!

Features:
* Polished 316 Stainless Steel
  Construction
* Flat chamber for easy cleaning
* Bladder activated sealing
* 10 program LCD control system
* Water proof (IP65) LCD control
   panel
* Water-resistant(IP65) electrical
   box
* Durable aluminum sealing bar
* BUSCH vacuum pump
* Available with
   PLC/TouchScreen for all
   Medical Applications


Option:
Sensor control
Gas flushing
High pressure seal
Double sealing bar (Top and bottom seal)
Automatic lid transfer system
Soft air
Double Seal Wire

Technical Data Sheet :
Sealing length: 33.9" (860mm) *4
Chamber height: 10" (250mm)
Chamber size: 40.9" (1040mm) x 38.3" (975mm) (L x W)
Sealing bar distance: 34" (860mm)
Vacuum pump capacity:160m3/h
Cycle Time: 10-25 Sec

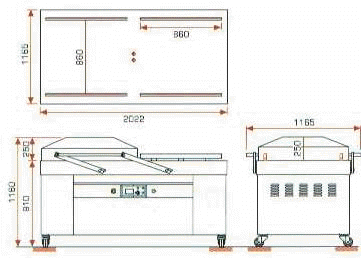

Machine size: 78.74" (2022mm) x 39.37" (1165mm) x 46.46" (1160mm) (L x W x H)
Voltage: 240 / 480 3PH
(Other voltages are available on request)
Power: 7.0kw
Weight: 1720 lbs (780 kg)
