Aline Heat Seal Corp >> Vacuum Chamber DC-800-S



Vacuum Chambers
DC-800-S



 Ideal for all medical, electronic, food
and industrial vacuum chamber applications!

The Aline DC-800-s vacuum chamber sets the new standard for vacuum chamber manufacturing.  With its polished stainless steel exterior and 10 program LCD control system, the DC-800-S provides un-matched ease of operation and un-rivaled features that have made Aline Heat Seal Corporation the standard in vacuum chamber manufacturing.

Key features like a BOSCH vacuum pump, water-resistant (IP65) electrical box and durable aluminum sealing bar make the Aline DC-800-S ideal for heavy duty industrial vacuum chamber applications.

Options like the Gas Flushing, Programmable PLC/Touchscreen and automatic lid transfer system make the DC-800-S perfect for your medical vacuum chamber applications including clean room vacuum chamber processes.

Only Aline Heat Seal gives you the power, flexibility and profitability features that can make your vacuum chamber application a success!





Features:
* Polished 316 Stainless Steel
   Construction
* Flat chamber for easy
   cleaning
* Bladder activated sealing
* 10 program LCD control
   system
* Water proof (IP65) LCD
   control panel
* Water-resistant(IP65)
   electrical box
* Durable aluminum sealing bar
* BUSCH vacuum pump
* Available with
   PLC/TouchScreen for all
   Medical Applications


Option:
Sensor control
Gas flushing
High pressure seal
Double sealing bar (Top and bottom seal)
Automatic lid transfer system
Soft air
Double Seal Wire

Technical Data Sheet :
Sealing length: 31.5" (800mm) *4
Chamber height: 8" (200mm)
Chamber size: 38.5" (980mm) x 28.7" (730mm) (L x W)
Sealing bar distance: 22" (560mm)
Vacuum pump capacity: 100m3/h
Cycle Time: 10-25 Sec
Machine size: 71.83" (1900mm) x 30.71" (780mm) x 40.55" (1030mm) (L x W x H)
Voltage: 240 / 480 3PH
(Other voltages are available on request)
Power: 3.0kw
Weight: 485 lbs (220 kg)

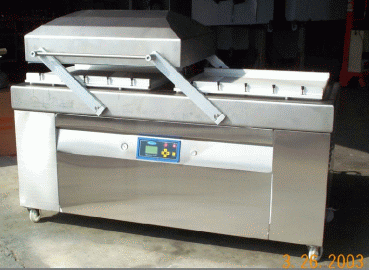

Aline DC-800 vacuum chamber

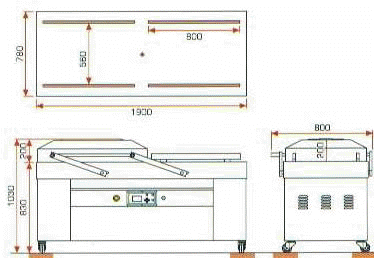

Aline DC-800 Vacuum chamber scematic drawing
