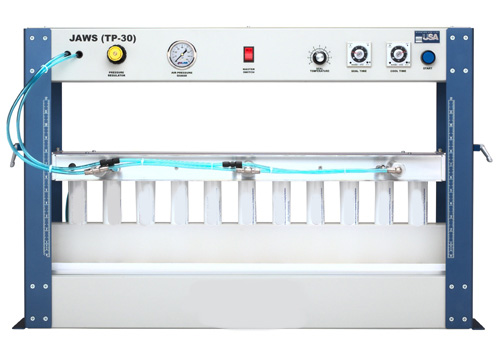

The ALINE Model TP-30 Pneumatically-operated
Plastic Tube Sealer is adaptable from the smallest to the largest
size tubes.
All controls are solid state to assure accurate control of seal heat, seal time and cool time. The integral air pressure regulator allows precise control of jaw pressure. Feed-thru design allows removal of the sealed tubes from either end.
Two custom-made tube racks are included with your order, along with detailed
operating instructions, sealing tips and a spare parts kit.
TP-30
Tube Sealer PRODUCTION RATES
|
TUBE
DIAMETER |
TUBES
PER RACK |
SEAL
PER MINUTE |
SEAL
PER HOUR |
SEALS
PER DAY |
|
INCHES |
MM |
| |
|
|
|
|
|
|
1/2 |
13 |
25 |
50 |
3000 |
24000 |
|
5/8 |
16 |
23 |
46 |
2760 |
22080 |
|
3/4 |
19 |
19 |
38 |
2280 |
18240 |
|
7/8 |
22 |
17 |
34 |
2040 |
16320 |
|
1 |
25 |
17 |
34 |
2040 |
16320 |
|
1
3/16 |
30 |
15 |
30 |
1800 |
14400 |
|
1
3/8 |
35 |
13 |
26 |
1560 |
12480 |
|
1
1/2 |
39 |
11 |
22 |
1320 |
10560 |
|
2 |
49 |
8 |
16 |
960 |
7680 |
NOTES:
1). NUMBER OF TUBES PER RACK IS BASED ON THE DIAMETER OF
THE TUBE.
2). NUMBER OF SEALS PER MINUTE IS BASED ON AN ESTIMATED CYCLE TIME OF THIRTY SECONDS. ACTUAL TIMES MAY VARY
SLIGHTLY AND DO NOT REFLECT AIR COOLING OR WATER COOLING OPTION.
 Dimensions:
36"
L x 24" H x 18" W.
|
Shipping Weight:
100 lbs.
|
|
