Semi Automatic Bundler

SAB Bundler Series

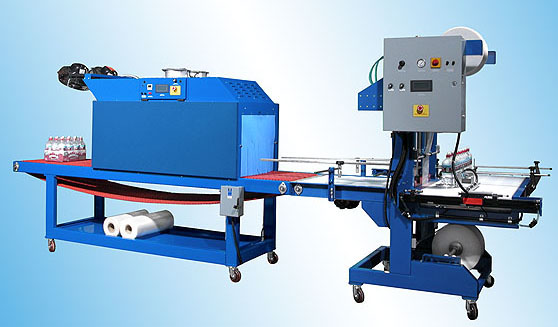

Sealer and Tunnel






  Sealer   Adjustable louvers inside heat tunnel   Heat tunnel Exit

The sealing section is air operated and all controls are PLC controlled with solid state dependability. Infeed conveyor features load-sensing speed control.
Shrink tunnel controls are all solid state with digital heat control, load-sensing conveyor speed control, automatic cool down and shut down. Cooling station on the exit end of the shrink tunnel with its own air velocity controls allows the use of polyethylene films.
Economical To Run Safety

For economy the following are standard:
High-energy shrink tunnel uses re-circulated air and energy-saving insulation. Low pressure closing for the sealing jaw.
Gravity film feed eliminates electric motors and controls. Emergency stop switches on both the sealer and tunnel.
Open mesh conveyor belt eliminates dangerous rollers.
Versatile

Will package collations of round, rectangular, and oblong-shaped containers without the use of costly trays. Quick changeover from product to product.
Can be easily moved from line to line.
