semi-automatic piston fillers and depositors

Semi-automatic piston filler
and depositor

Video for Automated System
Pneumatically Powered, 6 to 10 CFM @ 80 PSI.
Wetted metal contact parts of stainless steel.
Frame constructed of stainless steel.
Fills from fractional ounces to 8.5oz with cylinder change.
5 gallon stainless steel hopper
Product contact system held together with tri-clamp fittings.
Two types of machine cycle start, auto cycle mode and single cycle foot pedal.
Built-in scale for setting the stroke length.
Spare Parts Kit & Operations Manual.
The machine is capable of cycling 30 to 40 times per minute.
Variety of spouts and nozzle options including positive shut off.

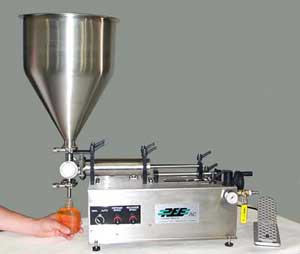

The SVS-J is our smallest semi automatic  piston filler, with a base of 19.5" by 9.5" and weighing approximately 35 LB. Interchangeable product cylinders range in size from .25 inches to 2 inches in diameter with a fill range from .2 to 8.5 fluid ounces. The SVS-J works well for lab use, start-up operation or small batch runs. The SVS-J has also been mounted on vertical and horizontal form-fill-seal machines. The SVS-J is also used in many applications in the cosmetic, personal care and food industries.
