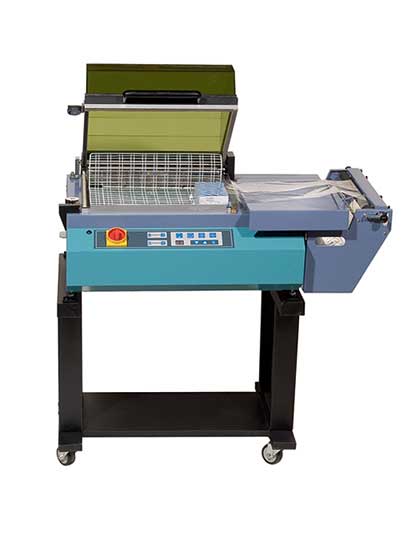

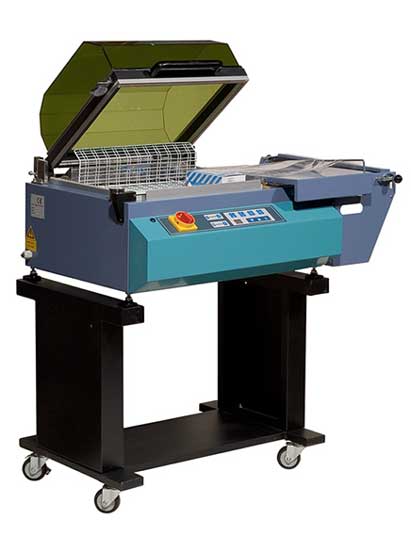

Entry Level Shrink Wrap Machines
| Aline is pleased to offer four low cost, effective shrink wrap machines ideal for low volume, start-up, or budget-conscious operations. |
 |
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
MODEL |
EKH-238 |
EKH-346 |
EKH-455 |
EKH-680 |
|
|
|
|
|
|
|
SEAL DIMENSION |
11 X 15" |
12.5 X 18" |
16.5 X 21.5" |
24.4 X 21.5" |
|
MAX HEIGHT OF PACKAGE |
4.7" |
4.7" |
9.8" |
9.8" |
|
|
|
|
|
|
|
ELECTRICAL(CHOICE) |
110V/18 AMPS |
110V/18 AMPS |
- |
- |
|
|
240V/10 AMPS |
240V/10 AMPS |
240V/16 AMPS |
240/380/400V/10 AMPS |
|
PHASE |
SINGLE |
SINGLE |
SINGLE |
THREE |
|
HERTZ |
50-60 |
50-60 |
50-60 |
50-60 |
|
HEATERS (3 EACH) |
600 WATTS |
600 WATTS |
750 WATTS |
1300 WATTS |
|
MOTOR |
1/4 HP (ONE) |
1/4 HP (ONE) |
1/2 HP (ONE) |
1/2 HP (TWO) |
|
|
|
|
|
|
|
MACHINE SIZE(INCHES) |
32 X 23 X 20 |
36 X 25 20 |
38 X 30 X25 |
60 X 39 X 25 |
|
NET WEIGHT |
140 LBS. |
155 LBS. |
250 LBS. |
265 LBS. |
|
SHIPPING WEIGHT(EST.) |
210 LBS. |
220 LBS. |
330 LBS. |
375 LBS. |
|
|
|
|
|
|
|
PRICE (F.O.B. CERRITOS, CA.) |
$2,090.00 |
$2,990.00 |
$3,590.00 |
$6,590.00 |
|
OPTIONAL STAND |
$125.00 |
$125.00 |
$160.00 |
$160.00 |
|
|
|
|
|
|
|
STANDARD FEATURES: |
|
|
|
|
|
|
IMPULSE SEALER |
|
|
|
|
FILM DISPENSER |
|
|
|
|
ADJUSTABLE PERF WHEELS |
|
|
|
|
SEPARATOR TRAY |
|
|
|
|
TABLE TOP DESIGN |
|
|
|
|
MAGNETIC LOCKDOWN |
|
|
|
|
TRANSPARENT LID |
|
|
|
|
ADJUSTABLE CHAMBER HEIGHT |
|
|
|
|
MULTIPLE MODES OF OPERATION |
|
|
|
|
|
|
|
|
|
|
|
|
